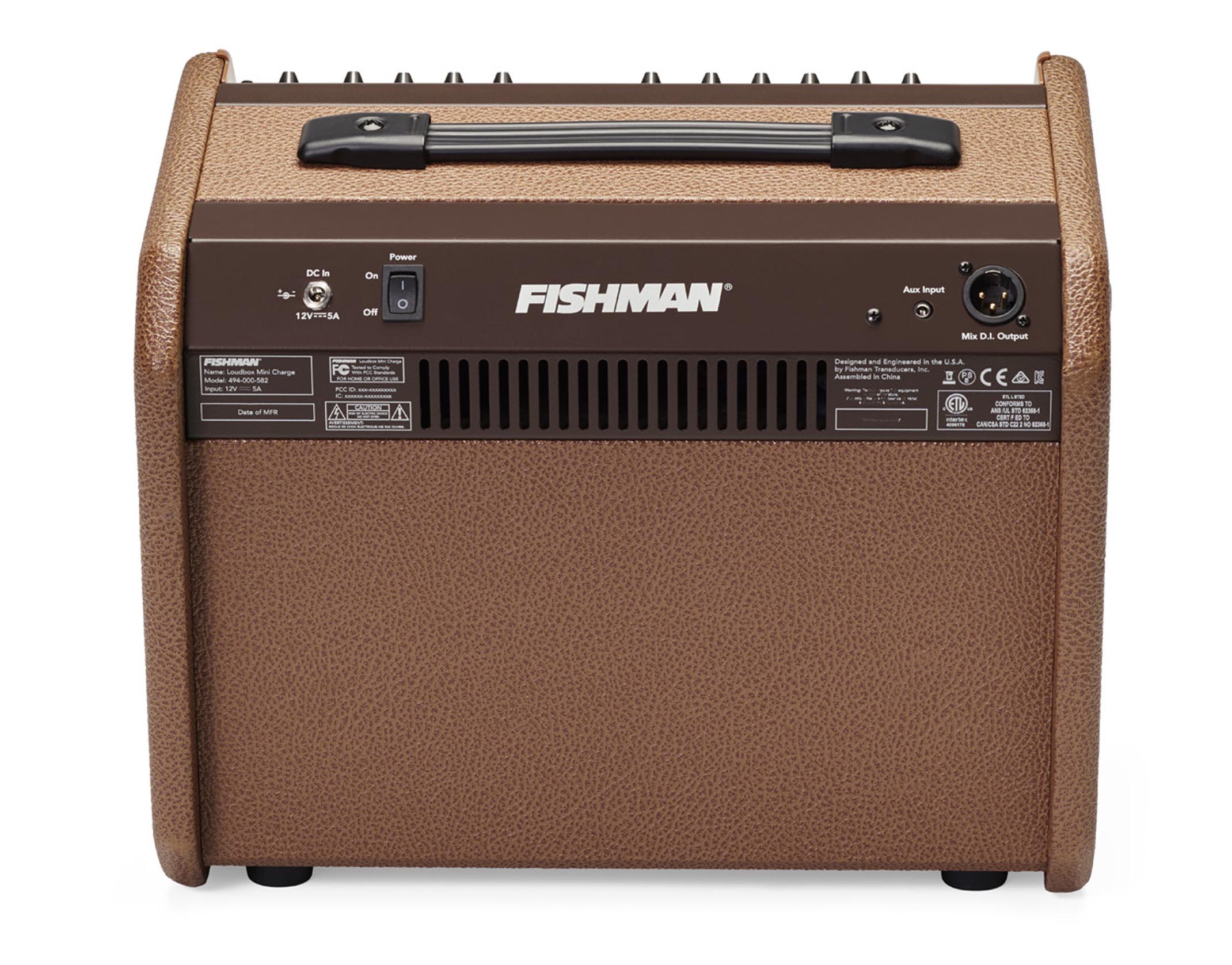

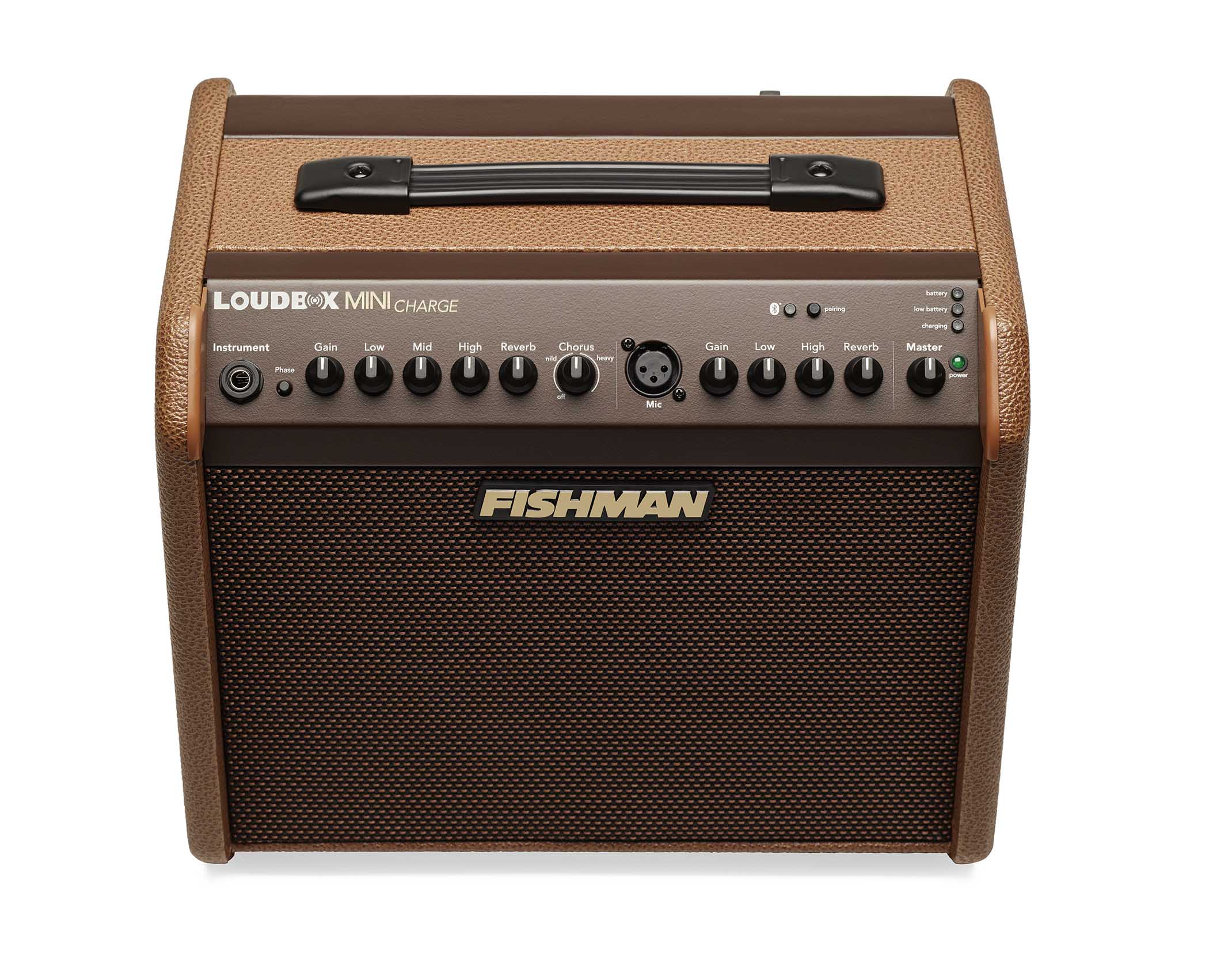

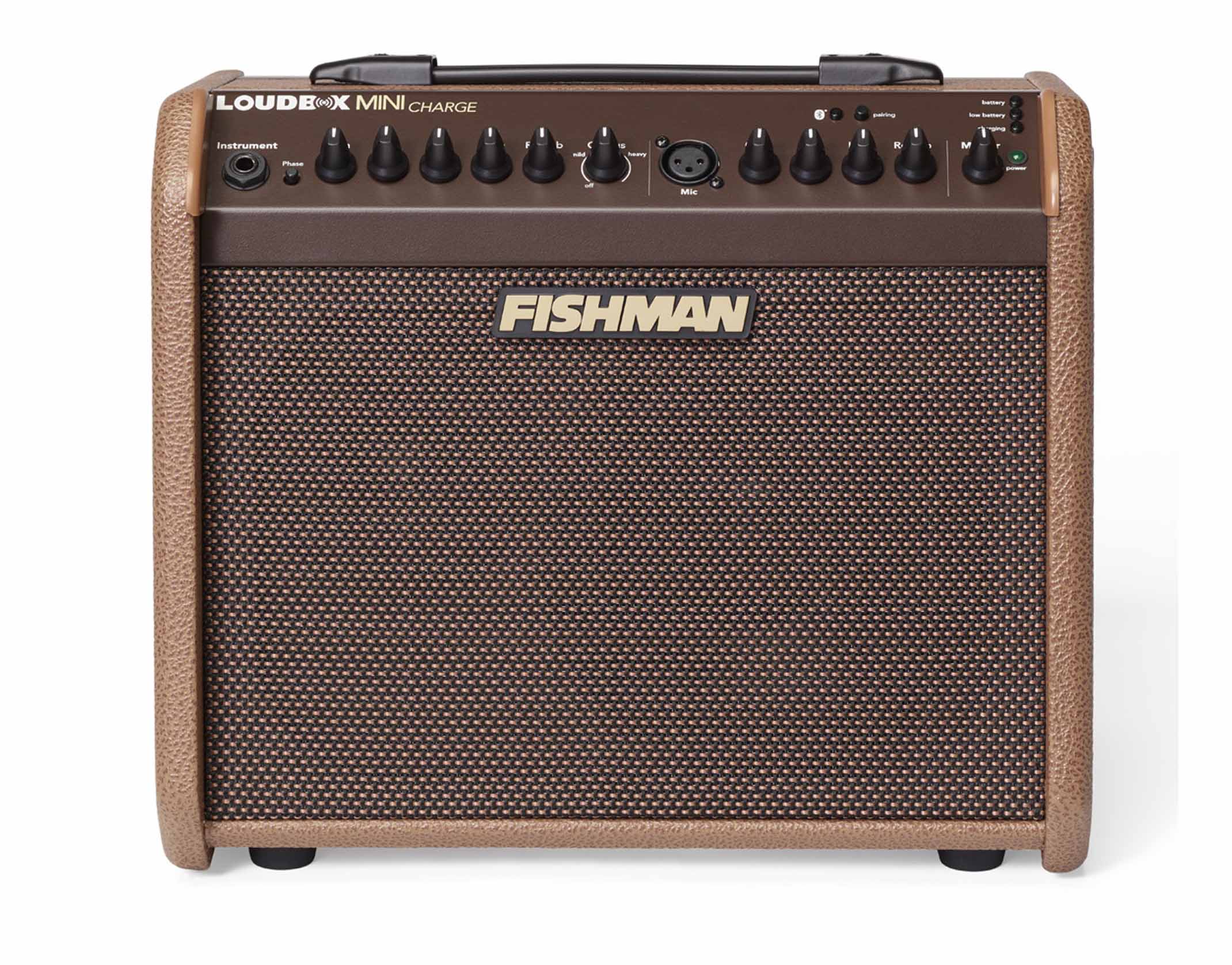

The Loudbox Mini Charge is a portable, battery-powered amplifier designed to faithfully reproduce the sound of acoustic instruments and a diverse assortment of vocal or recorded accompaniments. A powerful, rechargeable battery, combined with unique power management circuitry, is specifically designed to maximize output levels and playing time.With the addition of Bluetooth® wireless connectivity, you can now easily and neatly add backing tracks or other accompaniment to your performances, jams, or wherever your Loudbox Mini Charge takes you and your music.
FEATURES & INFO
| MODEL NUMBER: | PRO-LBC-500 |
| Rechargeable battery power |
| Bluetooth® 4.0 Connectivity |
| Dedicated Instrument and Mic Channels with Input Gain Controls |
| Mix D.I. output |
| Digital Reverb & Chorus |
| 1/8” Auxiliary Input |
| Balanced XLR D.I. output |
| Lightweight & Portable |
SPECS
| POWER: | 60 Watts with Master Volume |
| DRIVERS: | Woofer 6.5" paper cone
Tweeter 1" soft dome |
| SPL: | 108dB SPL at 1 meter |
| SPEAKER BAFFLE: | 10 degree built-in tilt |
| FREQUENCY RESPONSE: | 80Hz – 20kHz |
| BATTERY LIFE ESTIMATE: | 18 hours (low volume)
12 hours (average volume)
4 hours (full volume) |
| BATTERY CHARGE TIME: | 10 hours |
| CONNECTIVITY: | Bluetooth® 4.0 |
| DIMENSIONS: | 12" H x 13.7" W x 9.7" D
(305 mm x 349 mm x 247 mm) |
| WEIGHT: | 21.2 lbs
(9.6 kgs) |
| WALL CHARGER: | Included |
INSTRUMENT CHANNEL
1/4" input for active or passive pickups
|
Feedback-fighting Phase switch
|
| 3-band EQ with low, mid, and high tone controls |
| Reverb level |
| Dual-function Chorus |
MIC CHANNEL
| XLR input for dynamic microphones |
| 2-band EQ with low and high tone controls |
| Reverb level |
OPTIONAL ACCESSORIES
| DELUXE CARRY BAG | ACC-LBX-CC5 |
| 12V CAR CHARGER | ACC-PCC-005 |
| 12V WALL CHARGER | ACC-PWC-AU5 (Australia) |
